Hybrid Flash & Batt Systems

When evaluating insulation needs, several options are available, each with its own benefits. One solution that is gaining popularity in residential construction is the hybrid flash & batt system. But what exactly is it, and how can it benefit you?

In this article, we’ll explain the details of a hybrid flash & batt system, how it works, and why it could be the insulation option for your next project.

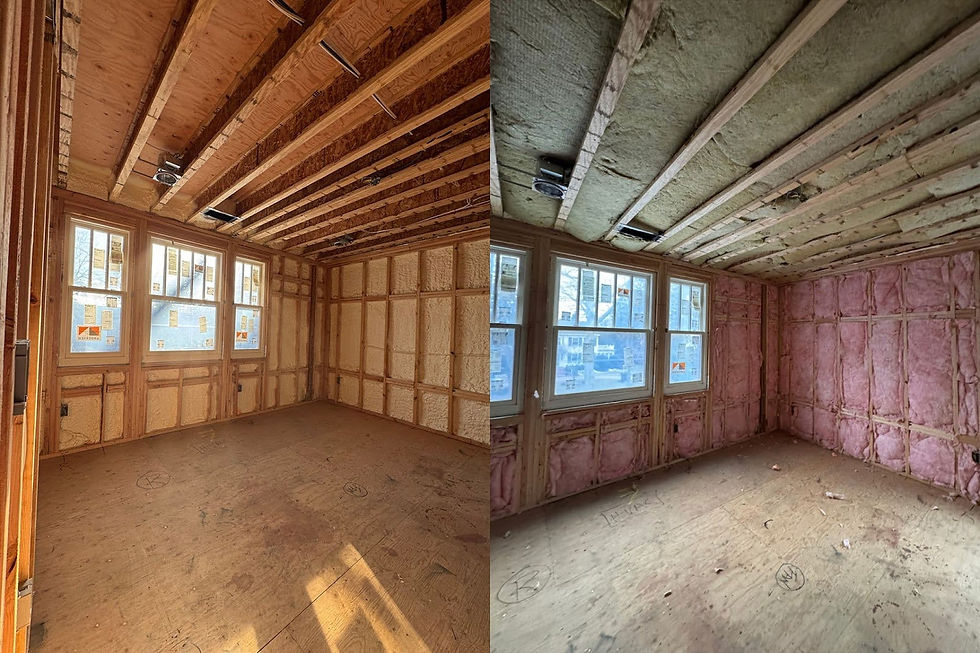

As pictured above, the closed cell spray foam “flash” (left) is applied first, followed by the fiberglass “batt” (right).

What is a Hybrid Flash & Batt System?

A hybrid flash & batt system combines two types of insulation materials: closed cell spray foam and unfaced fiberglass batt. These two materials work together to provide thermal insulation while meeting the required energy code standards.

Closed cell spray foam is applied first (the “flash”), followed by fiberglass (the “batt”). This combination achieves the R-values required by local building codes or energy efficiency software like REScheck.

How Does It Work?

• Closed Cell Spray Foam: Spray foam is applied to rooflines, wall systems, and floor systems, creating a dense, sealed layer. Closed cell foam is known for its excellent insulation properties and air-sealing capabilities. It adds a strong and efficient layer of thermal protection while also blocking out moisture.




• Unfaced Fiberglass Batt: After the foam is applied, fiberglass batt insulation is added to the remaining cavity spaces. Batt insulation has been used for decades and effectively fills voids between studs, rafters, or joists.




Combining these two materials, the hybrid flash & batt system creates an insulation solution with high R-values and excellent air sealing.

Benefits of the Hybrid Flash & Batt System

1. Achieves Code Compliance & Energy Efficiency

The hybrid flash & batt system is commonly chosen because it meets the energy efficiency requirements of building codes. The combination of spray foam and fiberglass batt allows the system to achieve the required R-values—a measure of insulation effectiveness. This ensures that a home or building will be energy efficient and remain comfortable throughout the year.

2. Cost Savings

One of the standout advantages of the hybrid system is its cost-effectiveness. Compared to projects using only closed cell spray foam insulation, it can save approximately 15-20% in total cost, depending on the job's specifics. Using a layer of spray foam in all areas and filling in with fiberglass batt reduces overall costs without compromising performance.

3. Enhanced Sound Attenuation

Another benefit of this hybrid system is its ability to enhance sound deadening. Both spray foam and fiberglass batt help reduce noise transmission between rooms or outside environments. This makes the system an excellent option for homes or buildings in noisy areas or where sound insulation is prioritized.

4. No Need for Intumescent Coating

In many cases, closed cell spray foam insulation requires an intumescent coating in certain areas to comply with fire codes. However, the unfaced fiberglass batt in the hybrid flash & batt system naturally acts as an ignition barrier. It can eliminate the need for this additional coating (always check with your local code official). This can save both time and money during installation.

5. Easier Post-Construction Work

Another advantage of the hybrid system is found when completing post-construction projects. The hybrid flash & batt system behaves similarly to traditional fiberglass batt insulation, making it easier for contractors or homeowners to access and modify wall systems in the future, should any additional work be required.

As pictured above, the closed cell spray foam “flash” (left) is applied first, followed by the fiberglass “batt” (right).

Considerations of the Hybrid Flash & Batt System

While this system has many advantages, it’s also essential to consider the potential drawbacks.

1. Increased Installation Time

The primary downside of using a hybrid system is the installation time. Applying spray foam and installing fiberglass batts requires more time, usually adding 1-2 days to the installation process, depending on the job size. However, the added time is typically outweighed by the benefits it provides.

2. Cavity Size

The building materials selected for each piece of construction determine the cavity depth available for the hybrid flash & batt system.  The framing elements in roof rafters, wall systems, and floor systems vary from project to project.  For instance, a hybrid to reach R-38 may be possible in a 2x10 floor joist but may not work if the joists were a 2x8.

Contact Us Today

The hybrid flash & batt system offers cost savings, energy efficiency, and enhanced comfort. By combining the best qualities of closed cell spray foam and fiberglass batt insulation, this system meets code requirements while offering added benefits such as sound attenuation and eliminating the need for intumescent coatings.

The hybrid system may be the perfect solution when planning a construction or renovation project. While installation time may be slightly longer, the benefits—cost savings, energy efficiency, and ease of future modifications—make it a wise choice for many building projects.
